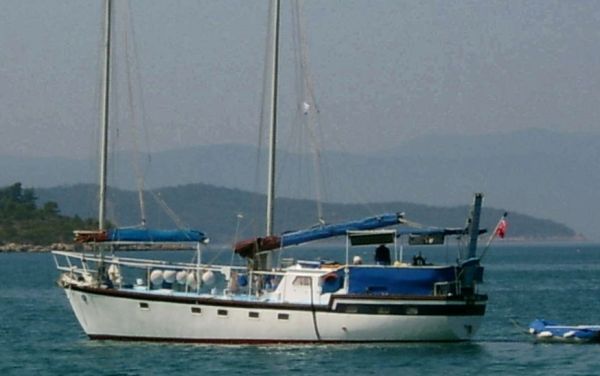

Hai Kung Chu - junk rig sailing boat


YACHT SPECIFICATION



Name: HAI KUNG CHU

Class of Yacht: Hartley Fijian

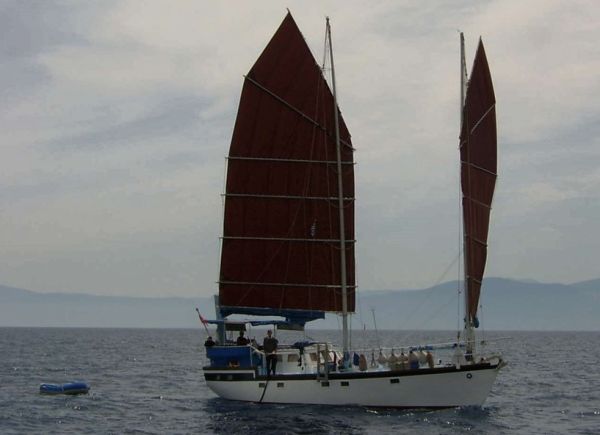

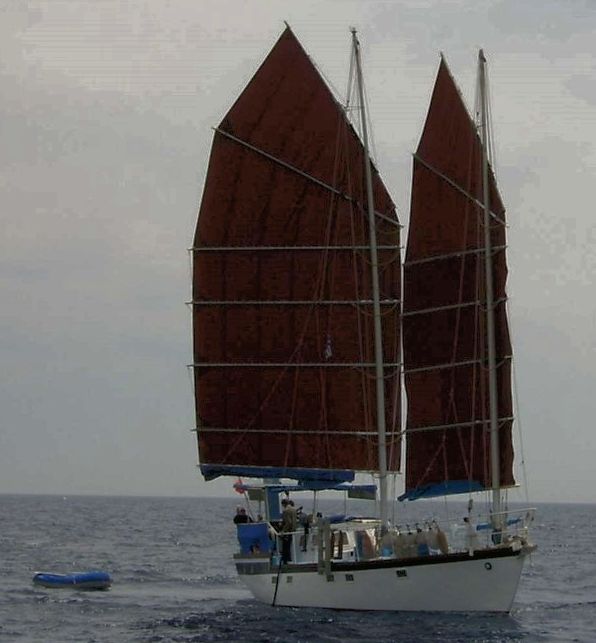

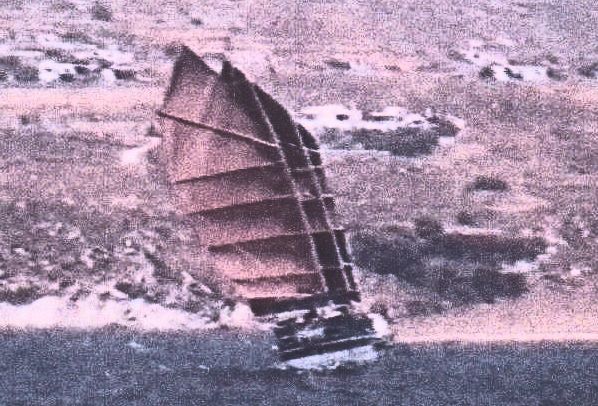

Type of Rig: Junk Schooner

Year Built: 1979 – 82

Builder: P Williams

Designer: Hartley / Williams

Construction Material: Ferro-cement, underwater hull sheathed in fiberglass woven matt and resin.

Colour: White with blue cove line

Keel Type: Long Keel

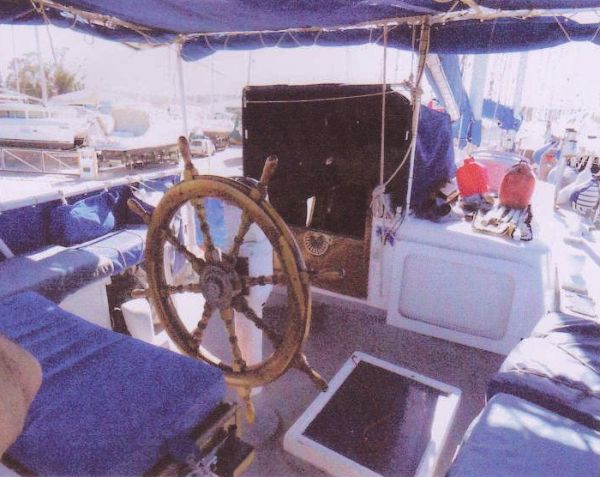

Steering Wheel with below hull rudder

Principal Dimensions: L.O.A. 13.8m (45.3’) L.W.L Beam 3.77m (12.4’) Draft 2.88m (9.45’)

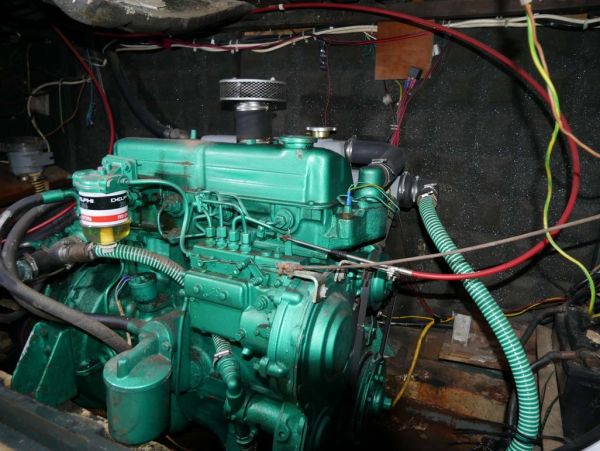

Engine: 1982 Darglow Ford 80hp Diesel 220 litres fuel

Max speed 8 knots, Cruising 5 knots (5 litre per hour)

Electric Start - 4 Batteries in bilges

Engine Instruments: Water & Oil pressure, Rev counter.

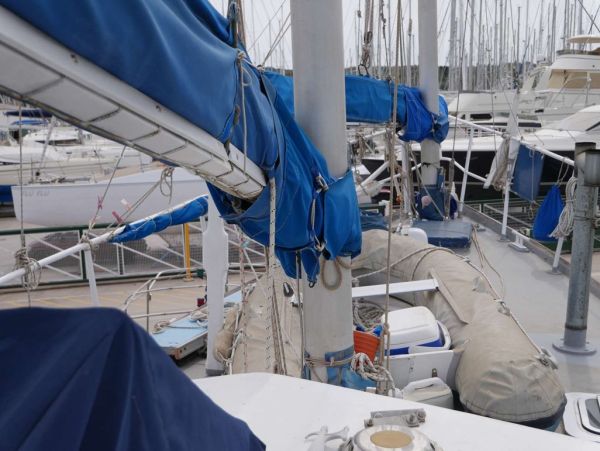

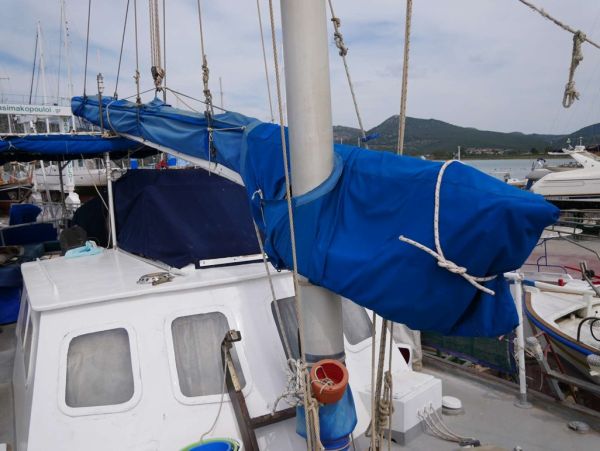

Spars: 2 Alloy Needlespar masts, with 2 sets of boom, Yard and 5 battens.

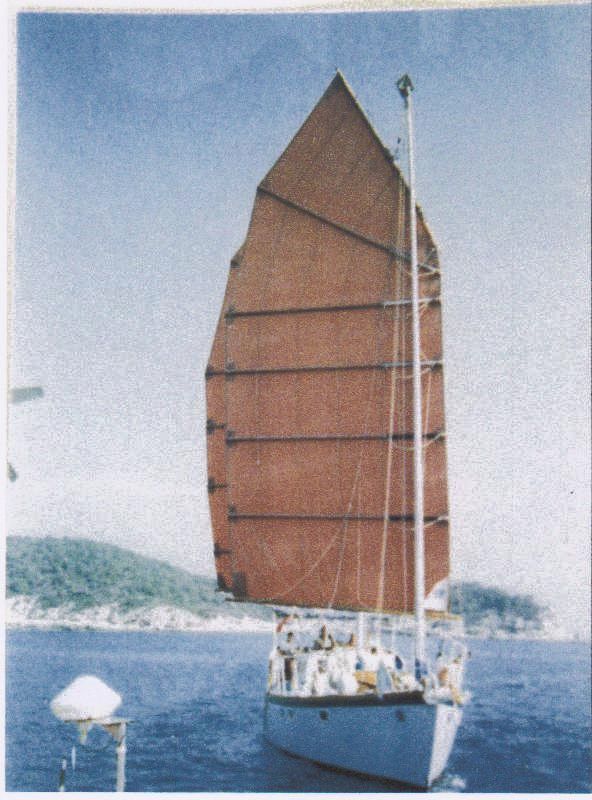

Sails: Mainsail of Tan 550 sq.ft. terylene, new 2000

Foresail of Tan 506 sq.ft. terylene, new 2000

Sailplan designed by Alan Boswell of Sunbird Marine.

Rigging: 2 manual winches, Assorted Teflon blocks.

Sunbird standard system.

Deck Equipment: Galvanized steel pulput, pushpit, and guardrails.

Lofran 1.5 hp Anchor Winch

Anchors: 100 lbs. Plough with 10m chain & 100m warp.

80 lbs Fisherman

60 lbs Danforth

Boarding Ladder, 8 Fenders, 6 Mooring warps.

Boathook, Bucket & Brushes, etc.

Bimini Sunshade

Safety Equipment: 2 Electric Bilge pumps with float switch

3 Fire Extinguishers and 1 Fire Blanket.

2 Lifebuoys & holders, 4 Safety harnesses

3 Life Jackets.

Instruments: Garmin 196 GPS; VHF Radio

Clipper Navtex; Clipper Echo Sounder.

Sestral Steering Compass

Clock & barometer.

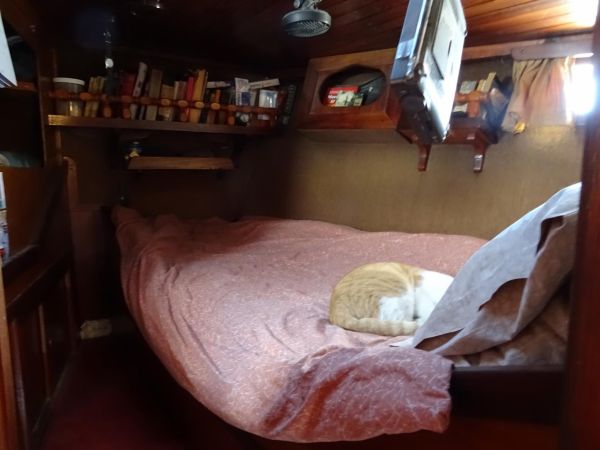

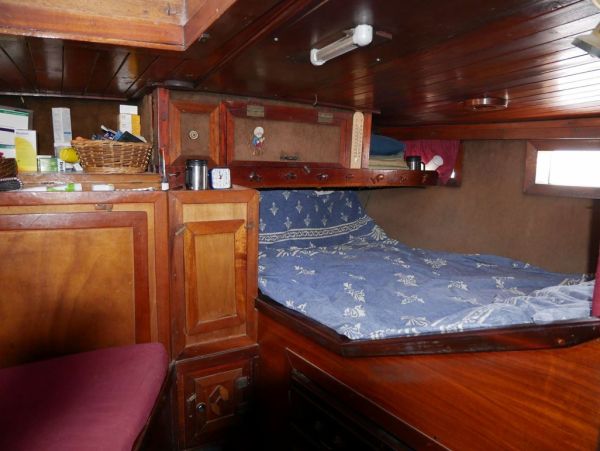

Accommodation: 1 Double Berth in aft cabin;

1 double berth in fore cabin

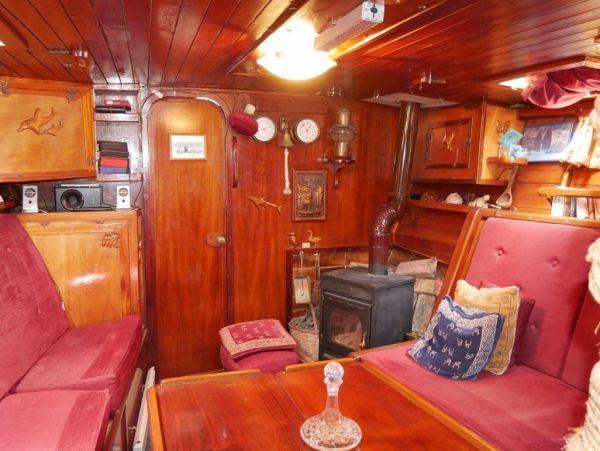

2 single settee berths in saloon, 4 Saloon lights.

Fixed table with drop down side.

6’3” headroom in saloon & forecabin.

6’ headroom in aft cabin. Wood burning stove.

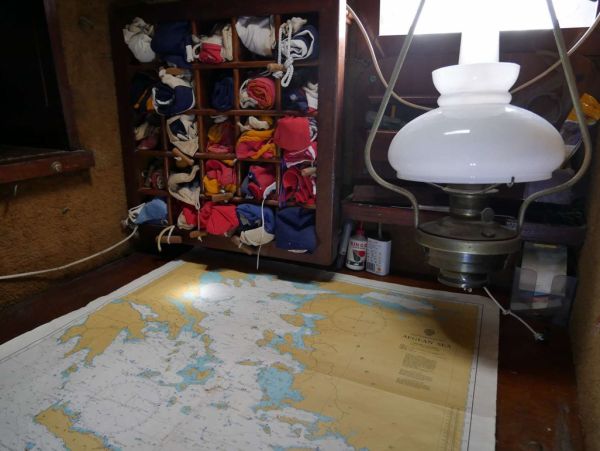

Chart room.

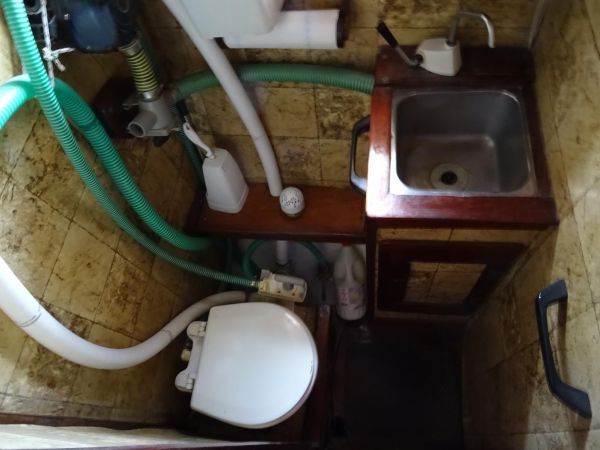

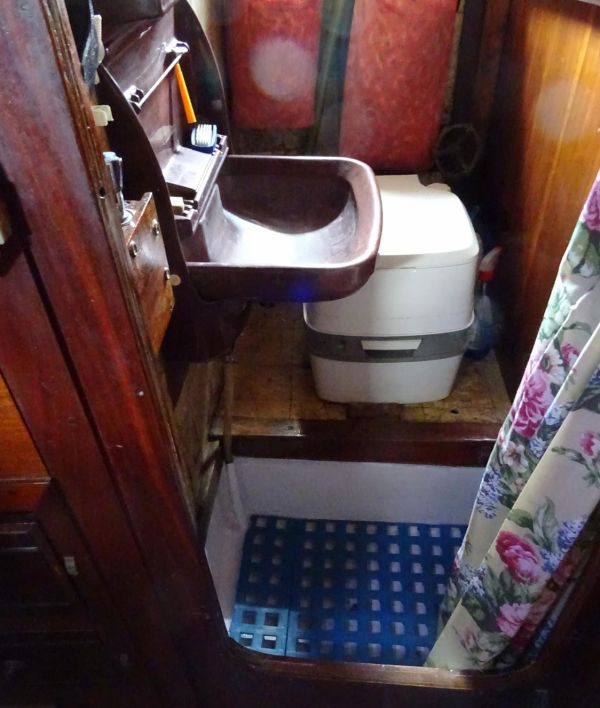

Heads: 1 sea toilet & 1 chemical, Shower & hand basin.

Hot and cold taps. Mirror.

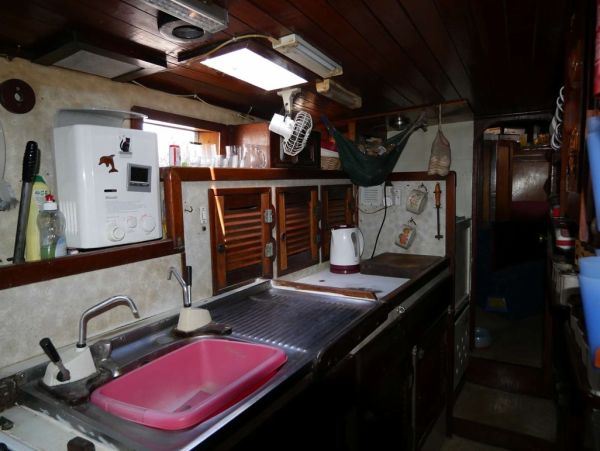

Galley: Gas 4 Burner stove, grill & oven. 2 gas bottles.

Battery Refrigerator. Gas Rinnai water heater.

Stainless steel basin with taps & sea water tap. Cooking utensils, & crockery & cutlery for 6

S/Steel sink with cold water tap.

Interior Finish: Plywood soles covered in carpet, with larch

headlinings & larch & mahogany hull linings.

Mahogany marine ply bulkheads.

Foam berth & settee cushions covered red velour. Gold curtains.

Tender: Inflatable Rib Waveline 2.9m 2014

Outboard Mariner Outboard 2.5 hp.

Misc. Equipment: S.W.E.B.A. shallow water extended breathing apparatus.

Solar Panels.

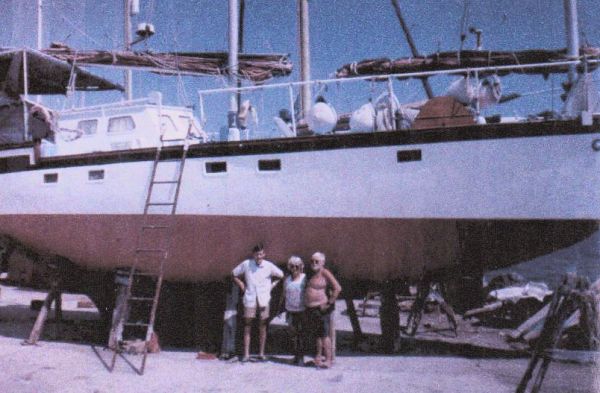

History of Yacht: One owner for 35 years.

Launched 1982 and cruised UK South Coast, Channel Isles and Brittany.

Left UK in 1984 and cruised south via Portugal and followed with extensive cruising in Mediterranean.
